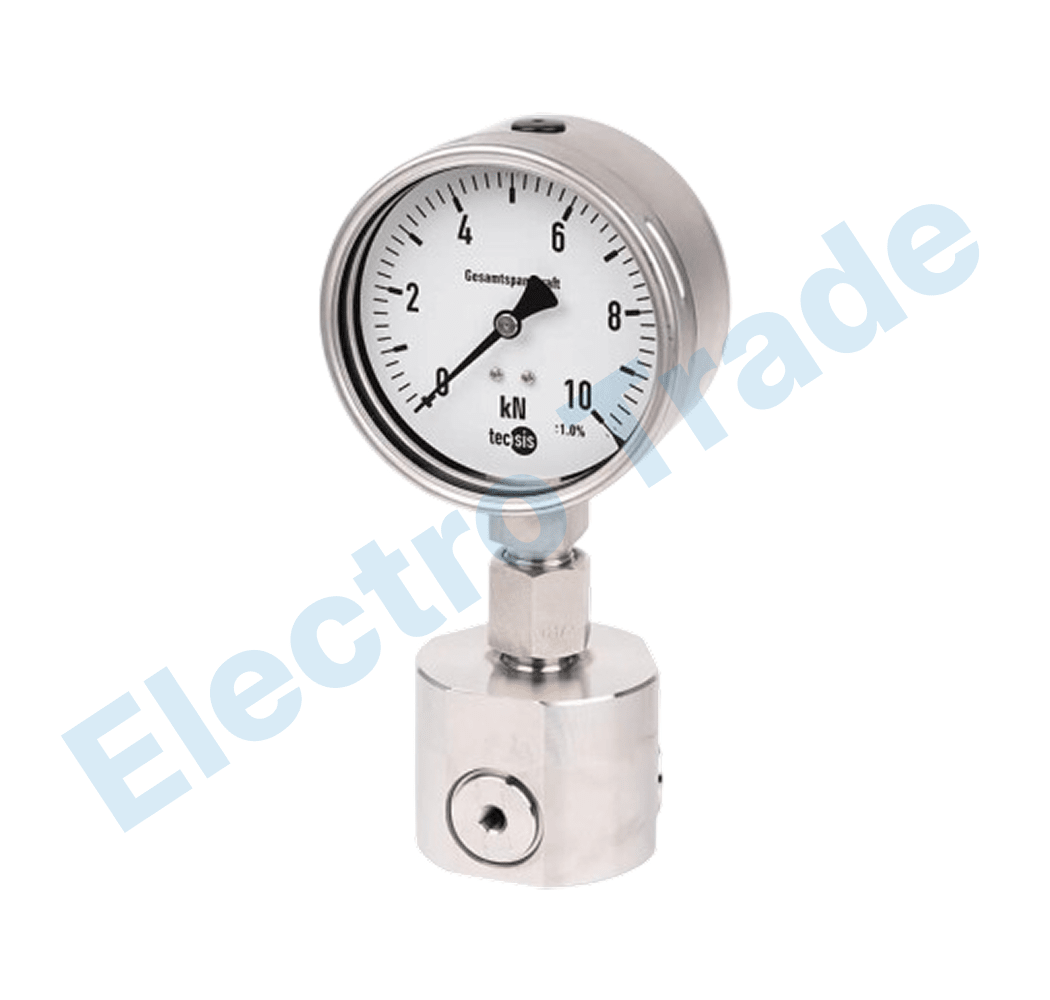

Wika Hydraulic compression force transducer Model F1112

Applications

• Measurement of clamping force in three-jaw chucks
• Equipment manufacturing
• Construction of jigs and fixtures
• Special machine building
• Measuring and control systems

Special features

• Measuring ranges 0 … 2.5 kN to 0 … 470 kN
• Relative linearity error ±1.0 … 1.6 % Fnom with analogue pressure gauge, ±0.5 % Fnom with digital pressure gauge or pressure sensor
• (For rated loads below 500 N, the accuracy is ±1.6 % Fnom for all connected measuring instruments.)
• Piston stroke ≤ 0.5 mm, force introduction as total clamping force
• Operates without supply voltage
• 5-year leak-tightness warranty
• (Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.)

Description

The hydraulic force transducer model F1112, version NS 3 x 16, is suited for regular testing of the clamping force in 3-jaw chucks. It thereby ensures optimum use of the clamping jaws.

Hydraulic force measurement is a simple way to capture and display the forces occurring in various applications.

The force is measured using the principle of hydraulics: The force acting on a piston leads to a pressure increase that can be visualised on a connected display instrument. The scale of the display instrument can be defined in various units (e.g. N, kN, kg, t).

Leak-tightness warranty

The warranty on leak tightness of the hydraulic force measuring unit was extended to 5 years. A force transducer that starts to leak within this period will be repaired free of charge.

Use of the force measuring unit as intended is a prerequisite for the extended 5-year warranty.
